AWS RDS setup

Sign into your AWS console

Firewall (Security Groups) setup​

We will first define a firewall rule so the approved Dalgo or organisation IP allowlist can access the database you are about to create.

https://console.aws.amazon.com/ec2/home#CreateSecurityGroup

Basic Details​

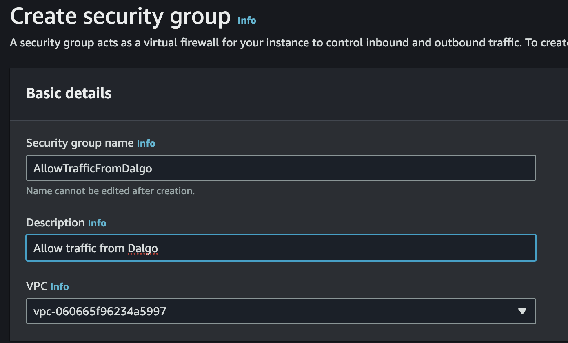

Start by naming your new security group

Screenshot

Inbound rules​

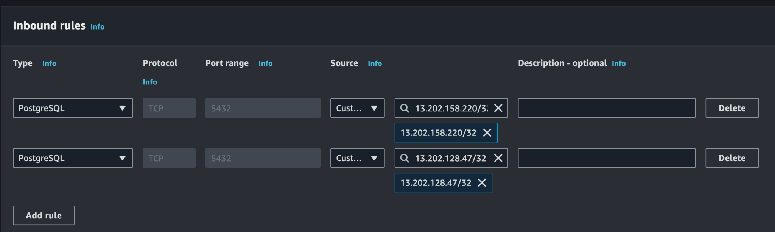

Next define inbound rules allowing PostgreSQL traffic on port 5432 from the approved IP allowlist for your environment. If Dalgo or your infrastructure team provides a current allowlist, use that rather than copying old IP addresses from an outdated guide.

Screenshot

Leave the Outbound rules and Tags as they are and click “Create security group”. Make a note of the name you chose above; we will use it later.

RDS Setup​

Now navigate to RDS
https://console.aws.amazon.com/rds/home

Look for and click the “Create Database” button

Screenshot

Engine​

Choose Postgres as your engine

Screenshot

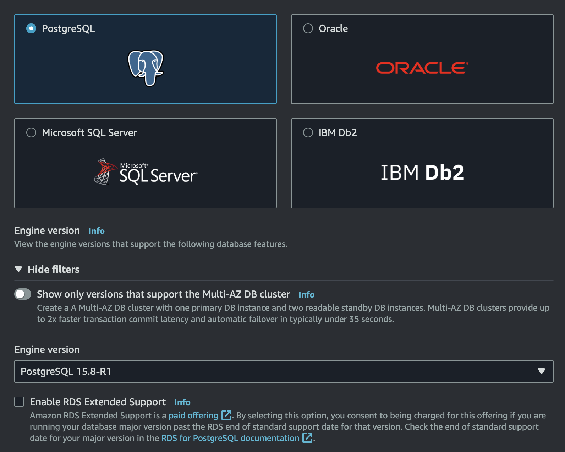

Use a currently supported PostgreSQL version that has been approved for your environment.

Screenshot

Templates​

Choose the template that matches your environment. For lightweight test setups, a free-tier or similarly small template can be a sensible starting point when available.

Screenshot

Availability and Durability​

Leave it pre-selected to “Single DB Instance”

Settings​

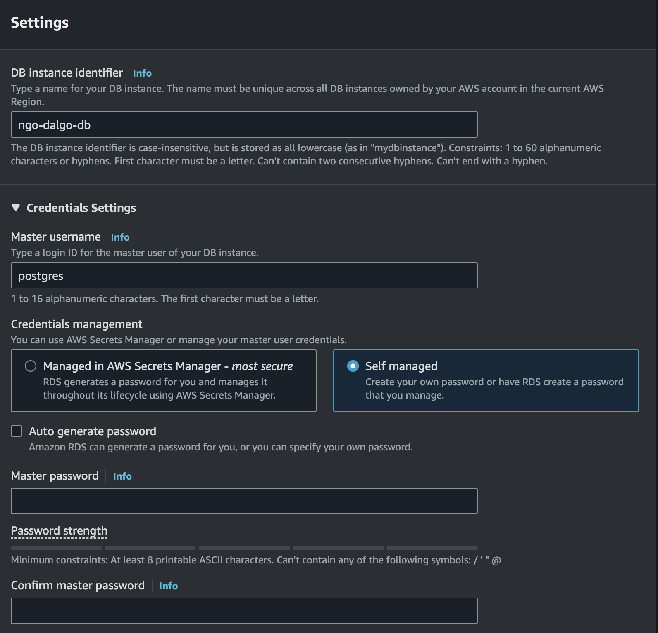

Under Settings, choose a name for your database instance. Use a master username that fits your team standard, then either set a password yourself or let AWS generate one for you. Store the final credentials in Vaultwarden or your approved secret store.

Screenshot

Instance configuration​

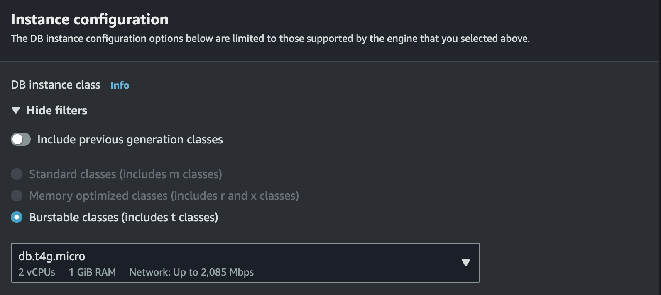

Next choose the instance type, including the RAM and CPU allocation for the database instance. Smaller classes can work well for lightweight or test environments, but size this based on your expected workload.

Screenshot

Storage​

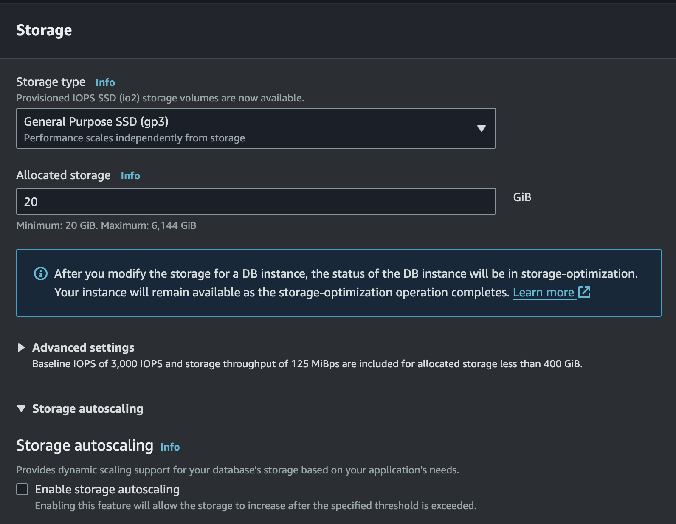

Now allocate storage for the database. A smaller starting size can be fine for test environments, but review autoscaling, retention, and cost controls before you create the instance.

Screenshot

Connectivity​

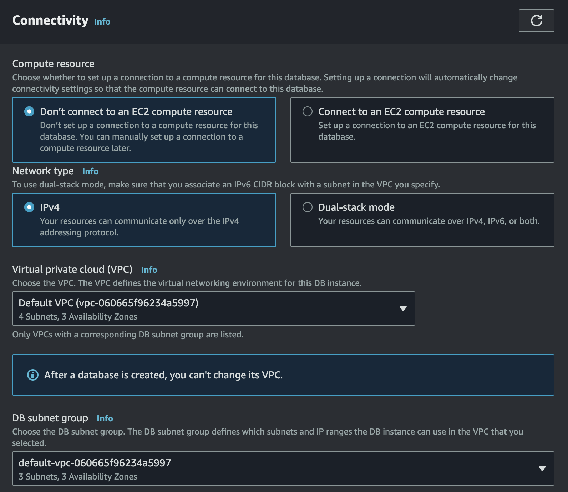

This is the most complicated section. The first few settings will remain unchanged

Screenshot

Enable public access only if your access pattern depends on IP allowlisting. If your organisation uses private networking or a bastion flow instead, follow that standard.

Screenshot

VPC Security groups

Screenshot

Add the security group created earlier; you will end up with “default” as well as your new security group listed here.

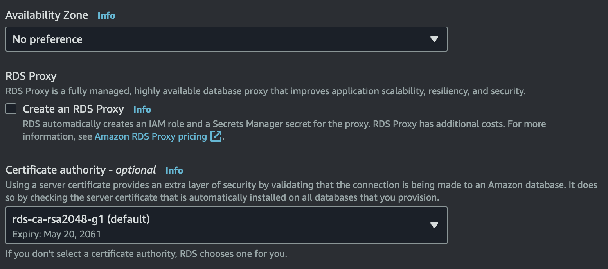

The remaining settings can be left unchanged
Screenshot

Tags​

Leave unchanged

Database authentication​

Leave set to “Password authentication”

Monitoring​

Review Performance Insights and the rest of the monitoring options based on your support and cost requirements.

Review and Create​

Have a look over your settings and then click the Create Database button

Screenshot
